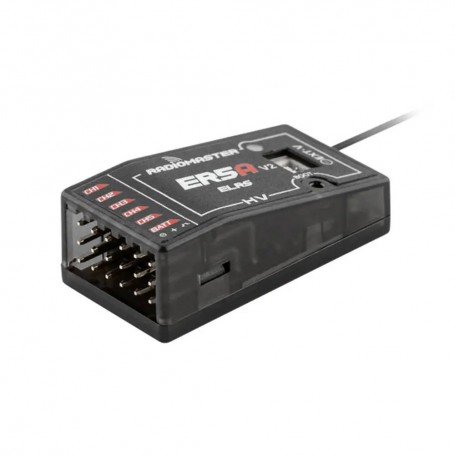

Radiomaster ER5A V2 ExpressLRS 2.4GHz PWM Receiver

Radiomaster ER5A V2 ExpressLRS 2.4GHz PWM Receiver

The RadioMaster ER5A V2 receiver harnesses the advanced ExpressLRS system, offering exceptional reliability, customizable settings, rapid response, and extended reception range for an unparalleled user experience.

This ELRS receiver controls up to 5 servos, incorporates receiver voltage and battery telemetry, and automatically selects the appropriate voltage input. It's specially crafted for aircraft applications.

Features:

Based on the Revolutionary ExpressLRS System

High performance, high reliability, flexible configuration, fast response speed and ultra-long range

Support 5 PWM Channels

Automatically detects voltage telemetry of external battery voltage or receiver battery / ESC BEC voltage

Built-in a TCXO (temperature-compensated crystal oscillator), ensures stable and accurate performance in any environment

Optimized ground-up PCB design

Supports Wi-Fi updates and WEBUI configuration

Compact size, easy to install. Perfect for aircraft applications

Specifications:

Item: ER5A V2 2.4GHz ELRS PWM Receiver

Power supply: DC 4.5-8.4V

Antenna type: High-sensitivity antenna

Wireless Protocol: ELRS 3.3.0 pre-installed

Channels: 5

Telemetry Voltage Detection Range: DC 4.0 - 35V

RF Telemetry: Yes

Telemetry Power: 10mw

Weight: 6.7 grams

Size: 37.0 * 19.3 * 13.0mm

Firmware: Device Category: RadioMaster 2.4 GHz / Device: RadioMaster ER5A 2.4GHz PWM RX

Package Includes:

1x RadioMaster ER5A V2 2.4GHz ELRS PWM Receiver

1x Voltage Telemetry Wire

1x User Card
