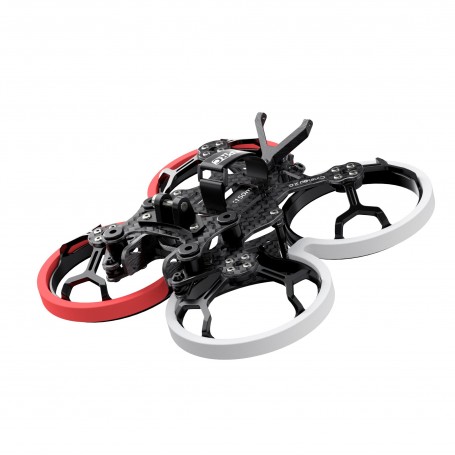

GEP-CL20 Frame
GEPRC GEP-CT30 O3 Frame
The GEPRC team has newly developed a 2-inch frame: GEP-CL20. The 2-inch frame can be shuttled in a narrow space, and can be adapted to O3 VTX, and can also shoot shocking effects in a narrow space.
The resigned camera gimbal can easily eliminate the high-frequency vibration and jello issues. Soft connection damping design of the camera gimbal and can also be mounted with a naked GP camera base, which supports the installation of Naked camera GP8/910/11, Insta360 Go2 and DJI Action2 cameras.
The flight controller mounting hole spacing is 25.5mm*25.5mm, which is compatible with various VTX holes on the market with 20mm*20mm/25.5mm*25.5mm. The 9mm * 9mm motor mounting hole is used to install larger 12-13 series motors, and the compact body makes the flight more confident.
Specification:
Model: GEP-CL20
Wheelbase: 100mm
Main plate: 2.5mm
Bottom plate: 1.5mm
Camera gimbal plate: 2.0mm
Camera gimbal triangle plate : 1.5mm
Motor plate gasket: 2.0mm
FC mounting holes: 25.5mm x 25.5mm
VTX mounting holes: 20mm x 20mm /25.5mm x 25.5mm
Motor mounting holes: 9mm x9mm
FPV camera spacing: 20mm
Suitable propeller size: 2 inch propeller
Weight: 53.4g
Flight controller: GEP-F4-35A AIO (mounting holes: 25.5mm×25.5mm)
Motor: 1303.5 (mounting holes: 9mm×9mm)
ESC: 35A
Propeller: 2 inch
Recomended Battery: 4S 660mAh
Features:
Combining aesthetics and engineering for compact design
2. Designed to mount a shock-absorbing gimbal under the independent FPV camera to reduce jello of FPV Goggles image.
3. 2 inch pusher design, small size and lightweight, more suitable for complex and narrow environments flight shooting.
4. SPEEDX2 1303.5 5500KV motor with Emax four-blade propellers make the flight shooting unhurried.
5. Design the outer EVA damping ring to effectively reduce the impact force.
Includes:
Plate:
1 x Main plate: 2.5mm
1 x Bottom plate: 1.5mm
1 x Camera gimbal plate: 2.0mm
1 x Camera gimbal triangle plate: 1.5mm
1 x Motor plate gasket: 2.0mm
Screw package:
4 x M2*1.9-OD4.9 self-clinching nut-brass color M2
1 x 7075 Aluminum Column M2*3.5*28
1 x 7075 Aluminum Column M2*3.5*25
1 x Single-ended bright-edge aluminum column M2*3.5*28
1 x Single-ended bright-edge aluminum column M2*3.5*25
2 x Round head screw with pad M2*8
18 x Round head screw M2*8
4 x Round head screw M2*5
6 x Round head screw M2*4 X6
10 x Round head screw M2*12
4 x Round head screw M2*16
4 x Half-round head M1.6*8
18 x Round head screw M2*7
10 x Self-clinching nut M2
10 x Nylon nut M2
4 x Nylon column M2*5mm
4 x Camera gimbal shock absorbing rubber ring
5 x Camera gimbal vibration dampening rubber
4 x BEC silicone gasket
3D printed parts:
1 x VTX Antenna mount (big hole)
1 x VTX Antenna mount(small hole)
1 x Receiver mount
1 x Receiver mount
1 x TBS Antenna mount
1 x Camera mount (1 hole)
1 x Camera mount (2 holes)
Injection molded parts:
4 x Propeller guard
Other accessories:
1 x Naked Camera GP8 base
1 x 4S Naked GP camera power cable (with balanced terminal head)
2 x Battery anti-slip pad
2 x Damping pad
4 x EVA damping ring
2 x Receiver antenna tubes 100mm
2 x Battery tie M15*150
1 x L-shaped screwdriver 1.5MM
2 x 3M double-sided tape
1 x Keychain
