GEP-MOZ7 V2 Frame

GEP-MOZ7 V2 Frame

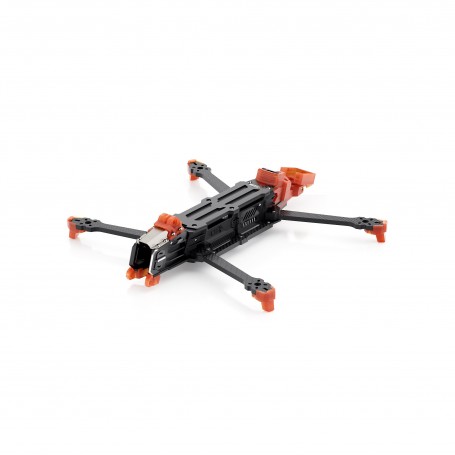

The GEP-MOZ7 V2 is a 7.5-inch long-range frame designed for the O4 Air Unit Pro HD VTX. It also supports 8-inch propellers and a wide range of compatible electronics setups.

Its extended front design ensures a clear, unobstructed view when using the O4 Pro VTX. The metal top plate protects the camera lens, while reinforced side arms increase rigidity and support bottom-mounted battery configurations. The VTX mount accommodates larger heat sinks for improved cooling performance, and the GPS mount supports M1025-series GPS units.

GEPRC remains committed to the FPV industry, continuously releasing high-quality, reliable products to enhance the user experience.

Features:

Compatible with the O4 Air Unit Pro HD VTX, with no props visible in the camera view.

Tech-inspired design featuring aerospace-grade aluminum camera mounts and a metal top plate for lens protection.

Vertical reinforcement structure and 6mm-thick arms ensure flight stability and support for bottom-mounted batteries.

O4 Air Unit Pro heat sink with fin and vent design for efficient cooling.

Adjustable 25x25mm GPS antenna mount, supports larger GPS units for faster satellite lock.

Front T-shaped antenna mount and rear vertical antenna for dual-frequency reception.

Action camera mount is interchangeable with metallic canopy for center of gravity adjustment.

Durable landing gear prevents the bottom plate from scraping during landings.

Specification:

Model: GEP-MOZ7 V2 Frame

Dimension: 376mm × 303mm × 35.5mm

Weight: 270g ± 5g

Wheelbase: 336mm

Top Plate Thickness: 2.5mm

Bottom Plate Thickness: 2.5mm

Arm Thickness: 6mm

Clamp Plate Thickness: 3mm

FC Mounting Holes: 30.5×30.5mm（M3) , 25.5×25.5mm (M2) , 20x20mm (M3)

VTX Mounting Holes: 25.5×25.5mm（M2），20x20mm（M2）

Motor Mounting Holes: 16x16mm / 19x19mm (M3)

Lens Mounting Holes: 20mm (M2)

Includes:

1x GEP-MOZ7 V2 Frame Kit

2 x M20*300mm battery straps

1 x Upper battery anti-slip pad

1 x Lower battery anti-slip pad

1 x Printed parts pack

1 x 1.5mm L-shaped screwdriver

2 x 2mm L-shaped screwdrivers

1 x 3mm L-shaped screwdriver

1 x M8 wrench

1 x Screw pack
