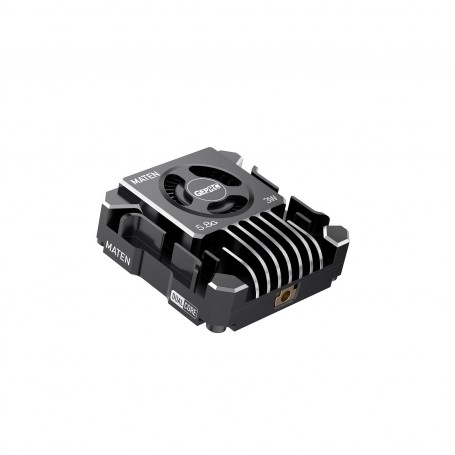

GEPRC MATEN 5.8G 3W VTX PRO
GEPRC MATEN 5.8G 3W VTX PRO
The MATEN 5.8G 3W VTX PRO is a high-performance VTX newly developed by the GEPRC team. With five adjustable power options and a dual-core design, it delivers up to 3000mW of power, ensuring stable signal transmission and excellent penetration.
Built with a high-strength CNC aluminum alloy shell, the MATEN 5.8G 3W VTX PRO offers superior heat dissipation and impact resistance. Its sleek design features a fan cooling function for optimal performance, while the built-in microphone transmits real-time audio from the FPV drone.
Supporting the IRC Tramp protocol, it allows you to adjust parameters through OSD. It operates within a voltage range of 7-36V and includes temperature protection to prevent overheating and damage. With 80 transmission channels and two mounting options, 20x20mm (M2) and 30.5×30.5mm (M2), it’s the perfect VTX for any build.
Features:
Dual-core design, up to 3000mW, suitable for long range flight
The well-chosen high-strength aluminum alloy CNC shell assist heat dissipation
The built-in micro turbofan dissipates heat actively
Wide voltage input supports 7V-36V voltage input
One function adjustment buttons, three indicator lights, easy to operate.
VTX control protocol IRC Tramp supports OSD parameter adjustment.
Temperature control protection function prevent overheat
VTX built in microphone,real-time transmission of sounds.
Supports 80 transmission channels
Support 20x20mm(M2) and 30.5×30.5mm(M2) two different mounting hole sizes
Specifications:
Model: GEPRC MATEN 5.8G 3W VTX PRO
Dimension: 36.3×36.3×15.1mm
Mounting Hole Size：20x20mm(M2),30.5×30.5mm(M2)
Output power: 25mW/200mW/600mW/1600mW/3000mW/Pit mode
Frequency：4.9G-5.8G
Channels: 80CH
Input voltage: DC7-36V（2-8S Battery）
Output Voltage: 5V@600mA
Protocol: IRC Tramp
Antenna Connector: MMCX
Cable Connector: SH1.0 6pin
Video Format: PAL/NTSC
Microphone: Built-in microphone
Weight: 21.1g
Notes:
Installing antenna before use.
Flying with constant airflow and under a well-ventilated environment to prevent overheating. Install a cooling fan if operating in confined conditions.
The 5V Output is for a Camera/Cooling Fan use only! Do not connect the battery input to the 5V Output, severe damage will occur to VTX.
Includes:
1 x MATEN 5.8G 3W VTX PRO VTX
1 x MMCX Elbow Copper Tube antenna
1 x MMCX to SMA (center hole) Adapter Connector
1 x SH1.0 6P VTX Connection Cable
6 x M2*5 Screws
6 x M2*12 Screw
