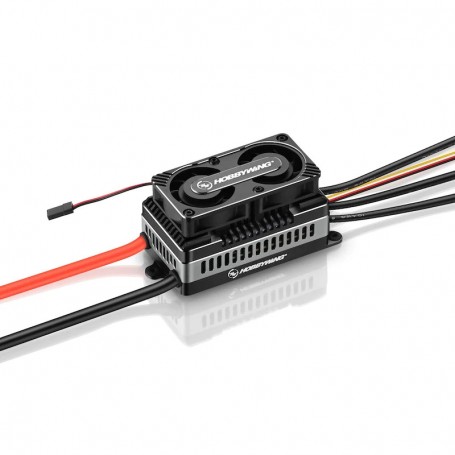

Hobbywing Platinum 260A HV V5 ESC (6-14S) - SBEC

Hobbywing Platinum 260A HV V5 ESC (6-14S) - SBEC

Introducing the Platinum V5 260A HV V5, a cutting-edge Electronic Speed Controller (ESC) that guarantees a flawless flying experience without BEC. Its constant speed control ensures a smooth flight, and the innovative housing design, featuring additional windows on the sides and an optimized internal structure, facilitates efficient heat dissipation. By allowing the generated heat to swiftly dissipate from the circuit board to the exterior through the shortest path, the ESC remains cool even during demanding flights.

Enhanced by an integrated 32-bit processor, the RPM algorithm’s precision is further improved, enhancing the overall performance of the Platinum ESC. To cater to individual preferences, the speed sensitivity is finely adjustable, empowering every pilot to find their ideal setting.

Moreover, the ESC incorporates Efficiency Optimization Technology with Synchronous Rectification (DEO: “Driving Efficiency Optimization” – Active Freewheeling), offering multiple advantages:

Faster throttle response, ensuring improved flight stability and maneuverability.

Higher driving efficiency, leading to longer battery life and extended flight time.

The ESC operates at lower temperatures, ensuring utmost reliability and durability during flights.

FEATURES:

Efficient cooling through a sophisticated heat dissipation system with windows

Supports multiple data protocols e.g. Mikado VBar System, Futaba S.BUS2, MSH Brain, and iKON

Includes data recording accessible via the OTA module on the smartphone

Multiple protection features

16 adjustable parameters, including 4 flight modes:

Fixed Wing

Helicopter – External Governor

Helicopter – Express Governor

Helicopter – Store Governor

Specifications:

Continuous/Peak current: 260A / 400A

Input voltage: 6-14S LiPo battery

BEC: Switch Mode BEC; output voltage 5-12V adjustable (adjusted 0.1V); output current cont. 10A, Peak 30A

Input/Output wires: 1 x black and 1x red 8AWG silicone wires / 3 x black 10AWG silicone wires

Independent parameter programming interface: Connect LCD program box or OTA module, or to power the cooling fan

LED light: Display the statuses and fault alerts

Size/Weight: 89 x 50 x 34mm / 297g (With wires)

Mounting holes: M3, 39 x 98mm

The scope of application: 700-800 class electric helicopter (main rotor length 700-880mm), or fixed-wing
