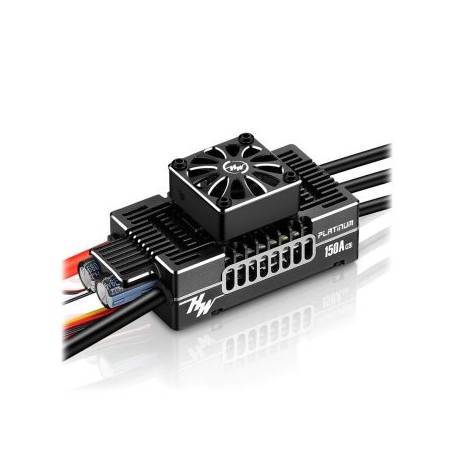

Hobbywing Platinum 150A v5.1 ESC 8S, SBEC 12V/10A

Hobbywing Platinum 150A v5.1 ESC 8S, SBEC 12V/10A

Hobbywing Platinum 150A v5.1 ESC is the ideal companion for electric helicopter and fixed-wing models. Equipped with the latest technology, it offers a variety of protective options to ensure a safe flight experience. The main new feature in version 5.1 is the revised switch mode BEC, which now supports 5 to 12 volts. Compared to the previous ESC version, the RPM accuracy algorithm makes the Platinum 150A even more powerful and reliable. The adjustable sensitivity for a constant speed also makes it easy for every pilot to find settings that suits their own flying style under current flight conditions.

The special design improves air circulation so that the operating temperature does not reach a critical level. The open design of the controller is immediately apparent. The additional use of thermal tape and another heat sink inside ensures an overall extension of the service life and improved heat dissipation on the external capacitors which are quite sensitive.

Features:

Improved switch-mode BEC with 5-12V instead of only up to 8V as with version 5

The 32-bit processor and the special algorithm for accurate RPM ensure even more power

Supports 520 to 580 flight models now instead of 550 to 580

Compatible with Mikado VBar Control and VBar Telemetry Ready and many more

Equipped with “DEO” (Driving Efficiency Optimization) for the best control characteristics and performance

Efficient cooling through ventilation slots on two sides

Multiple protective functions

Specifications:

Current Cont./Peak: 150A/180A

No. of Cells: 3-8S

BEC Voltage: 5 – 12V @ 10A (Switch Mode)

BEC Current Cont./Peak: 10A / 30A

Cable Battery/Motor 1x 10AWG (red, black) 3x 12AWG (black)

Plugs Battery/Motor: 4mm gold plugs

Dimensions: 83,2 x 37,1 x 22,5mm

Weight: 150.4g

Application: 550-580 Electric Helicopter (Main Blade Length: 550-580mm)

Includes:

1x ESC Platinum V5.1 150A

1x Manual
