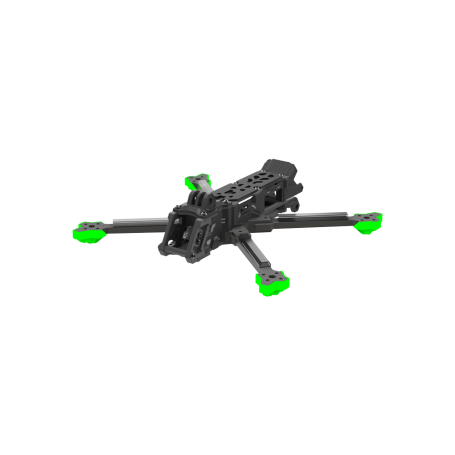

Nazgul Evoque F5 Frame Kit

Nazgul Evoque F5 Frame Kit

The old days are over, getting your electronics full of dirt and wet grass every time you crash.

Our latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits.

Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.

Highlights:

V1 is specially designed for DJI air unit, walksnail VTX, analog VTX (not compatible with DJI O3)

Latest Nazgul Frame Upgrades for Maximum Protection

Specifications:

Product Name: Evoque F5 Frame Kit

Frame wheelbase: 225mm (Squashed X) / 223 mm (DeadCat)

Frame Dimension: L258*W199*H25 mm (Squashed X) / L190*W136*H36 mm (DeadCat)

Frame Body Dimension: 36mm

Arm Thickness: 6mm

Bottom Plate Thickness: 3mm

Top Plate Thickness: 2mm

Upper Plate Thickness: 3mm

Camera Plate Thickness: 3mm

Motor Mounting: 16x16mm

VTX Mounting: 25.5*25.5/Φ1.6mm

Weight: 150grams (Included no TPU Parts)

Package included:

1 x Evoque F5 Frame Kit

1 x GoPro TPU Base Mount

1 x Screw Bag

4 x TPU Armguard

1 x Front Bumper TPU

1 x Rear Bumper TPU

2 x Anti-slip Battery Pad

2 x Battery Strap (20*250mm)
