BLITZ F7 Pro Combo Set (E80 Pro 4-IN-1 ESC)
BLITZ F7 Pro Combo Set (E80 Pro 4-IN-1 ESC)
ESC version with CNC aluminium Heatsink for a better dissipation
Improved circuit design, better components, and lower electrical noise!
DJI HD VTX Connector (Plug-and-Play / No soldering required)
FC indicator LEDs for visual debugging
512MB BlackBox
With LC filter
FC Specifications:
Product Name: BLITZ F7 Pro Flight Controller
Mount pattern: 35*35mm/ 4mm PCB hole diameter
Smartaudio / IRC Tramp VTX protocol supported
Firmware target: IFLIGHT_BLITZ_F7_PRO
Input Voltage: 14.8V-34V (4S-8S LIPO)
Motor outputs: 4x (SH1.25 connector)
Flash: 512MB (Blackbox flash)
I2C serial: SDA / SLA pads
Dimensions: 41*41.5mm
Barometer: DPS310
OSD Chip: AT7456E
LED controller: Yes
MCU: STM32 F722
Weight: 17g (±2)
Beeper pad: Yes
Gyro: BMI270
UARTS: 4
FC Wiring Suggestion:
UART1 for VTX HD/Analog
UART2 for Receiver
UART4 for GPS
UART5 for ESC Telemetry
8×Dshot/PWM outputs
1×I2C for GPS Mag
ESC Description:
The MOSFET used by BLITZ E80 is PSMN1R0-40YLD, which can withstand a continuous current of 80A at 25°C, with a maximum power dissipation of 198W. BEC power supply adopts TI automotive-grade dedicated synchronous rectifierchip, supporting up to 100V.
The 1-4 layer power board of the PCB circuit is ultra-thick copper with a thickness of 4OZ, ensuring continuous output under high-power operation. The STM32F051 main control processor with a running frequency of up to 48MHz, combined with a three-in-one driver IC, achieves a faster running speed!
ESC Features:
Rational layout, countersunk holes on extended solder pads to ensure PCB layer connection
G071 MCU, 48mHz maximum clock speed;
TDK MLCC Low ESR ceramic capacitors;
Top grade PSMN1R0-40YLD MOSFET;
8 layers double-sided PCB board
ESC Specifications:
Product Name: BLITZ E80 4-IN-1 ESC
Input Voltage: 2-8S
Max. Continuous Current: 80A
Max. Burst Current: 100A
MCU: G071
BEC: No
Firmware: BLHeli32
Current Sensor: Yes
Telemetry: Supported
Target: IFLIGHT_BLITZ_G2
Mounting Dimensions: 35x35mm/Φ3mm
Dimensions: 35x42mm
Weight: 65g(±10)
Protocal:Supports DShot DShot150/300/600/MultiShot/ OneShot etc

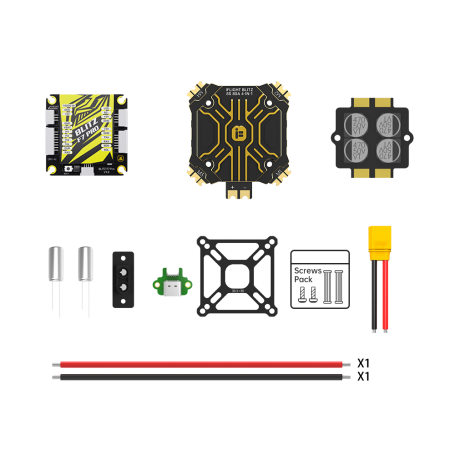

Packing List:
1 x BLITZ F7 Pro Flight Controller
1 x BLITZ E80 4-IN-1 ESC with CNC Heatsink
1 x 50V 470UF capacitor Plate
2 x 50V 470UF capacitor
1 x Wiring set
1 x USB Adapter Board
