BLITZ F7 Pro Combo Set (E80 single ESC)
BLITZ F7 Pro Combo Set (E80 single ESC)
Single ESC version with CNC aluminium Heatsink for a better dissipation
Improved circuit design, better components, and lower electrical noise!
DJI HD VTX Connector (Plug-and-Play / No soldering required)
FC indicator LEDs for visual debugging
512MB BlackBox
With LC filter
FC Specifications:
Product Name: BLITZ F7 Pro Flight Controller
Mount pattern: 35*35mm/ 4mm PCB hole diameter
Smartaudio / IRC Tramp VTX protocol supported
Firmware target: IFLIGHT_BLITZ_F7_PRO
Input Voltage: 14.8V-34V (4S-8S LIPO)
Motor outputs: 4x (SH1.25 connector)
Flash: 512MB (Blackbox flash)
I2C serial: SDA / SLA pads
Dimensions: 41*41.5mm
Barometer: DPS310
OSD Chip: AT7456E
LED controller: Yes
MCU: STM32 F722
Weight: 17g (±2)
Beeper pad: Yes
Gyro: BMI270
UARTS: 4
FC Wiring Suggestion:
UART1 for VTX HD/Analog
UART2 for Receiver
UART4 for GPS
UART5 for ESC Telemetry
8×Dshot/PWM outputs
1×I2C for GPS Mag
ESC Description:
BLITZ E80 BLHeli Dshot600 Single ESC was designed to give your motors smooth power with great stability and durability.
The 32bit 48mHz G071 MCU and 11 pieces TDK MLCC total 240UF Low ESR capacitors bring faster responding speed and a smoother flying experience.
ESC Features:
2-8S input (max 8S)
80A 8 layers 4OZ copper PCB, better operating load capacity;
11 pieces TDK MLCC total 420UF Low ESR capacitors, lower ripple and more stable;
Top grade NTMFS5C430NL MOSFET, stable and reliable;
1 * 3528 LED for power- on display;
Rational layout, large soldering pad, countersinks and semicircle orifices enable each layer to be energized after power-on.
ESC Specifications:
Product Name: BLITZ E80 Single ESC
Input Voltage: 2-8S
Max. Continuous Current: 80A
Max. Burst Current: 100A
MCU: G071
BEC: No
Firmware: BLHeli32
Current Sensor: Yes
Telemetry: Supported
Target: IFLIGHT_BLITZ_G2
Dimensions: L40 x W17 x W10mm
Weight: 14.5g(±2)
Protocal: DShot DShot150/300/600/MultiShot/OneShot PWM Drive
ESC Support:
Current Sensor
Telemetry output
Motor Timing
Brake on Stop

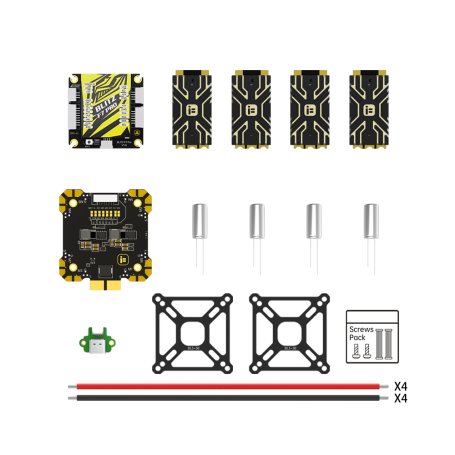

Packing List:
1 x BLITZ F7 Pro Flight Controller
4 x BLITZ E80 Single ESC with CNC Alum Cover
4 x 50V 470UF capacitor
4 x Power cables & ESC signal wires
1 x BLITZ Pro PDB
1 x Screws Pack
1 x USB Adapter Board
