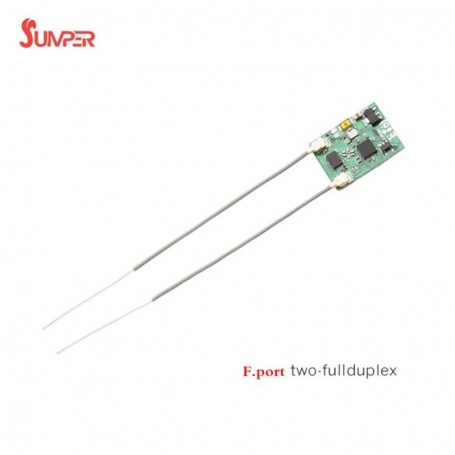

JUMPER R1F - Full duplex Sbus

JUMPER R1F - Full duplex Sbus

Jumper innove avec le récepteur R1F full duplex télémétrie, compatible Fport, prévu pour les quads FPV racing et parfaitement compatible avec le protocole Frsky D16, antennes diversity, FPort, bouton de Bind...

Ce récepteur propose les mêmes performances et un câblage plus facile que le fameux Frsky R-XSR

Description:

The Jumper R1F receiver is compatible with all devices capable of using FrSky D16 mode with telemetrie.

Spécifications:

Dimensions: 20*15*4mm (without antenna)
Weight: <2g
Number of channels: 16ch
RSSI (Signal Strength Indication) output: 0-3.3v
Data return:F.port
Operating voltage range: 4.0~6V
Operating current range: 80mA@5V
Effective distance: full distance (>1.5km)
compatibility: FrSky D16 Mode

Binding method:

Press and hold the receiver's bind button, turn on the power, the receiver will now enter binding mode.

The red light is always on and the green light is flashing slowly.

Turn on the remote control and begin the bind procedure according to your radio.

After the bind is successful the red light is off and the green light is always on.

Note: When the receiver loses the signal, the green light is off and the red light is flashing slowly.
