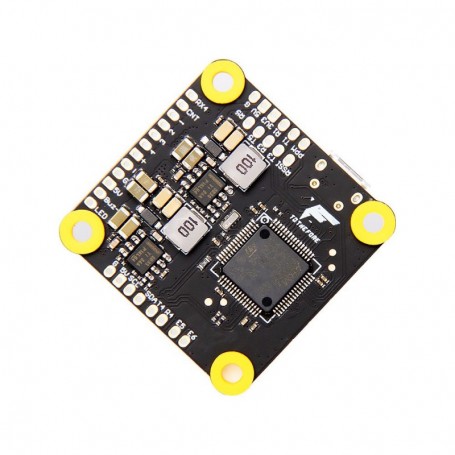

T-Motor F7 Flight Controller (DJI HD Version)

T-Motor F7 Flight Controller (DJI HD Version)

This is the HD Version of the T-Motor F7 Flight Controller for easy plug-and-play with the DJI HD FPV system

The T-Motor F7 Flight Controller comes with an LC filter, which is great for eliminating interference to your VTX or other equipment.

Equipped with a 5V/2A BEC for receivers and 10V/2A for VTX. The F7 is loaded with 6 UARTs and is specially optimized to fit the F55A PRO II ESC.

Features:

UART 5-RX inverted for SBUS

UART 4-RX for reading ESC Telemetry data

ADC-Current pin for current sensor

Specifications:

Input Voltage: 3-6S (12V-25.2V)

MCU: STM32F722RET6

Blackbox: 16MB Onboard Flash

UARTs: 6

ESC Connections: 6

Firmware: BetaFlight

Target: TMOTORF7

BEC: 5V/2A(Receiver), 10V/2A(VTX)

Current Sensor: Esc Telemetry / Current ADC

Buzzer: Pads

Barometer: No

Dimensions: 37x37x7mm

Mounting Pattern: 30.5x30.5mm

Weight: 8.4g

Included:

1 x T-Motor F7 Flight Controller (HD Version)
