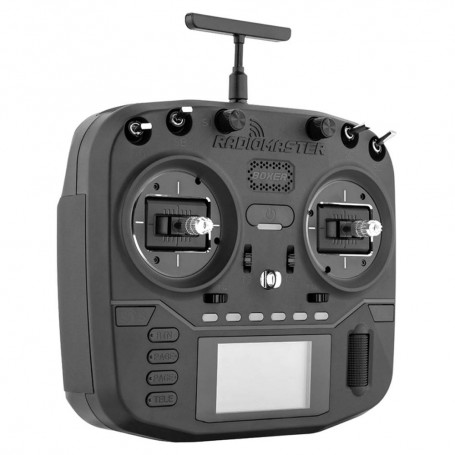

RadioMaster Boxer Radio Transmitter CC2500

RadioMaster Boxer Radio Transmitter CC2500

The RadioMaster Boxer Radio Transmitter is compact, ergonomic, and powerful.

This radio features an STM32VGT6 processor, QC3.0 charging, and new low-profile latching SE switch and momentary SF switch.

Featuring full size hall gimbals for precision control and an intuitive button layout, the BOXER gives you a compact radio without compromising on comfort and function.

Features:

Industry first fabric handle for improved portability

Standard JR module compartment Internal module

External Module Power Slots in Battery Cover

Signature RadioMaster Carrying Case

Supports External 2S Power Supply

Gimbal Protector for Safe Storage

Internal Module CC2500

Oversized Battery Compartment

Supports USB-C direct charging

Pre-installed EDGETX Firmware

V4.0 Full-Size Hall Gimbals

Supports 2.0A MAX

Ergonomic Design

Specifications:

Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)

Battery: Supports 2S 6200mAh for up to 20 hours (Batteries are not included)

Standardized button layout: Versatile 6-position switch for flight mode access

Radio Firmware: EdgeTX (Transmitter) / Multi-Module (RF module) / ELRS

Transmitting Power: 30dBm max FCC (ELRS); 20dBM (4-in1/CC2500)

Gimbal: High precision 4.0 Hall gimbals as standard (AG01 Optional)

Refresh Rate: Internal ELRS module capable of 1,000Hz (ELRS only)

Upgrade Method: USB/SD card & EdgeTX Companion PC software

Protocols Options: 4-in-1, CC2500, or ELRS 2.4GHz

Channels: Max 16 channels (Receiver dependent)

Processor: STM32VGT6 processor with 1MB RAM

SD card: Slot with pre-loaded SD card included

External module: JR/FrSKY/Crossfire compatible

Module Power Slots: External in Battery Cover

Antenna: Adjustable/Removable T-Antenna

Display: 128*64 Monochrome LCD display

Supported protocols: Module dependent

Cooling Fan: Built-in (ELRS Only)

Frequency: 2.400GHz-2.480GHz

Voltage Range: 6.6-8.4V DC

Model: Radiomaster Boxer

Fast Charging: QC3.0

Size: 235*178*77mm

Weight: 532.5g

Includes:

1x RadioMaster Boxer Radio Transmitter CC2500

1x 3D Printed Gimbal Protector

1x Radiomaster Carrying Case

4x Low Tension Springs

1x 18650 Battery Tray

1x 1.5mm Allen Key

2x M4*4 Screws

1x USB-C Cable

1x T-Antenna

1x Stickers

1x Manual
