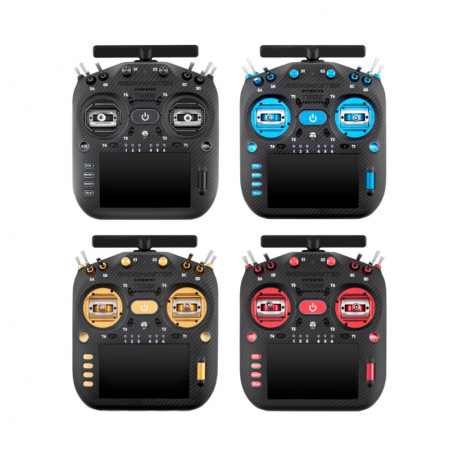

RadioMaster TX16S Mk3 MAX Radio Controller (ELRS)

Color

319,00 CHF TTC 295,10 CHF (HT)

TTC

Description

RadioMaster TX16S Mk3 MAX Radio Controller (ELRS)

RadioMaster builds on the globally trusted TX16S legacy, continuing its commitment to open-source RC innovation.

Built for pilots who expect more, the TX16S MK3 MAX represents the pinnacle of the TX16S platform—combining the proven full-size layout with premium materials, advanced controls, and uncompromising attention to detail.

The MAX edition is defined by materials, precision, and feel. For those who value performance over polish, theTX16S MK3 Standard delivers the same power, speed, and precision in a clean, functional design with our new V6 Hall gimbals.

TX16S MK3 MAX Radio Controller (ELRS / M2)

Features:

High-Performance MCU: Powered by the STM32 H7 chip for maximum processing power.

Touchscreen Display: 5-inch, 800 x 480 IPS touchscreen with vivid colors and sharp detail.

Precision Gimbals: AG02 Quad-Bearing, CNC Aluminum Hall sensor gimbals (Model dependent).

Internal RF Module: Dual-band Gemini 2.4GHz and Sub-G 900MHz

Smart Balance Battery Circuit: Maximizes battery efficiency and longevity for better battery life.

Powerful Cooling System: Low-noise, high-output fans and an aluminum heat sink keep your radio cool, even on the hottest days.

Digital audio: Greater sound quality and reduced interference.

Dual Foldable Antennas: Compact and easy to store without compromising signal strength.

Built-in Microphone: For future feature expansion.

Automatic back light adjustment: Makes the screen easier to read indoors and out.

Built-in Motion Sensor: Trigger switches, pan/tilt cameras, or telemetry callouts simply by tilting your radio.

Memory: Integrated 4GB of onboard flash memory and external MicroSD card support.

Removable shoulder switch panels: Customize your setup with modular switch panels.

Specifications:

Item: TX16S MK3 MAX Radio Controller

Color: Black / Red / Blue / Gold

Voltage Range: 6.6 - 8.4V DC

Working Current: 1.10A (at max RF output power)

Radio Firmware: EdgeTX (require 3.0.0 or higher)

Built-in RF Module: ExpressLRS 2 x LR1121

Frequency: ISM 2.4GHz and Sub-G 900MHz

Number of Channels: Up to 16ch

Gimbal: AG02 CNC Hall sensor gimbals

MicroSD Card Slot: Yes (card not included)

Internal Storage: Integrated 4GB of onboard flash memory

Display: 5-inch IPS touchscreen (800 X 480 resolution)

Battery: Two 3.7V 18650 Lithium-Ion cells / 21700 Li-ion 5000mAh Battery / 2S 7.4V 6200mAh Lipo (batteries not included)

Upgrade Method: USB / EdgeTX Companion PC software

Module Bay: JR-compatible module bay for additional modules

Dimensions: 200*178*88mm

Weight: 864g (without battery)

Powered by the advanced STM32H7 processor, it offers lightning-fast performance, smooth operation, and instant responsiveness. The bright 5-inch 480×800 IPS touchscreen provides a sharp, sunlight-readable interface for easy navigation and programming.

TX16S MK3 MAX Radio Controller (ELRS / M2)
