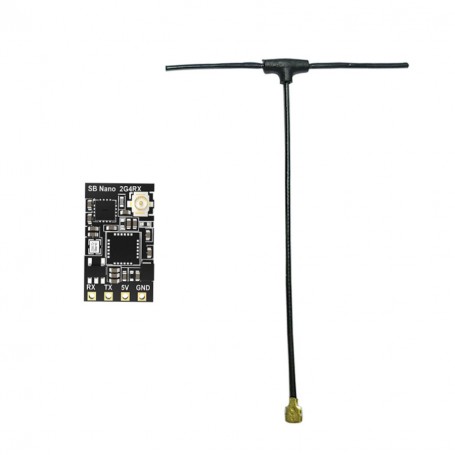

SpeedyBee Nano 2.4G ExpressLRS ELRS Receiver

SpeedyBee Nano 2.4G ExpressLRS ELRS Receiver

This Nano ELRS receiver from SpeedyBee offers excellent performance at an unbeatable price. The receiver is powered by an SX1280+ESP8285 chip and features PA (Power Amplifier) & LNA (Low-Noise Amplifier) to further boast signal reception and telemetry range.

The Rx can transmit at a power of 100mW. It is very compact, measuring just 10.4mm by 18.4mm and weighing a mere 0.7 grams without the antenna. It is supplied with a T-antenna.

Light indicator:

Double red blinking: Binding

Slow red blinking: powering up but unlinked, no packages received from the transmitter

Solid red: receiver is connected, with signal received

Fast red flashing: Wi-Fi is turned on, and updating via Wi-Fi is available

​(Tip: To turn on Wi-Fi, wait for 60 seconds after powering on or long press button for 3 seconds. To enter binding mode, power cycle Rx 3 times)

Name: ExpressLRS Receiver

Frequency: 2.4Ghz

Antenna: T-antenna (54x78mm, 0.6g)

Chip: SX1280+ESP8285

Power: 100mW

Input voltage: 5V

Antenna connector: IPEX1

Weight: 0.7 gram(without antenna)

Dimension: 10.4mm*18.4mm

Default Firmware: SpeedyBee Nano 2.4GHz RX 3.3.1

Includes:

1x SpeedyBee Nano 2.4G ExpressLRS ELRS Receiver
