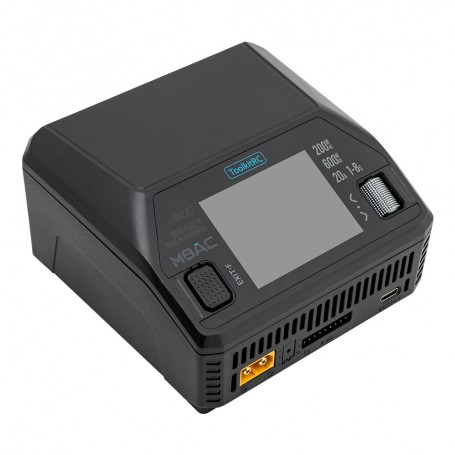

ToolkitRC M8AC 1-8S AC 200W DC 600W 20A Battery Charger - XT60

ToolkitRC M8AC 1-8S AC 200W DC 600W 20A Battery Charger - XT60

The ToolkitRC M8AC is equipped with a dual input system and can charge batteries from 1 to 8S with 200W AC input and 600W DC input.

It also has a high balance accuracy of  0.005V and a robust balance current of 1000mA.

In addition to charging, it offers numerous auxiliary functions and a smart 2.4" IPS LCD display. With comprehensive security protection, this charger improves the performance of classic batteries.

Specification:

Product size    108×113×62mm

Product weight    500g

Packing size    136×153×67mm

Packaging weight    600g

LCD    IPS 2.4″ LCD 320×240px

Input voltage  AC 100-240V@MAX 2.5A / DC 7-35V@MAX 25A

Battery type    LiPo LiHV LiFe Lilon LTO @1-8S

NiMH @1-20S   Pb@1-12S

Balance current    1000mA@4.2V

Balance accuracy    <0.005V

Charging power    0.1-20A@600W

Discharging power    0.1-20A@300W Recycle Mode / 0.1-3A@20W Normal Mode

USBC    MAX 20.0V@65W Upgrade

Voltage    1.0V-5.0V @1-8S

Internal resistance    0.1mΩ-99mΩ @1-8S

MEASURER:

PWM    880us-2200us@20-400Hz

PPM    880us-2200us×8 CH@20-50Hz

SBUS    880us-2200us×16 CH@20-100Hz

OUTPUT:

PWM    500us-2500us@20-1000Hz

PPM    880us-2200us×8 CH@50Hz

SBUS    880us-2200us×16 CH@74Hz

Power    0.5-15A@1-35V Mode: CC+CV

Package Includes:

1 x ToolkitRC M8AC

1 x AC Input Cable

1 x USB Cable

1 x Quick Manual

1 x Screen Protector
