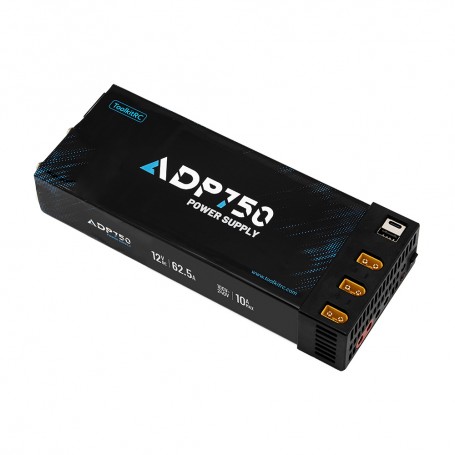

ToolkitRC ADP750 Powersupply 12V 62A 750W

ToolkitRC ADP750 Powersupply 12V 62A 750W

The ToolkitRC ADP750 is a powerful 12V power supply with up to 750W output power.

It is specially designed for charging setups in the RC sector, offers seven outputs (including 3× XT60) and is ideal for powering an M8D charger at full capacity.

Thanks to intelligent fan control and comprehensive protection features, it operates reliably and safely.

Features:

750W at 12V; up to 62.5A continuous current

7 outputs: 3× XT60, 2× 4mm banana socket sets, 1× USB-A, 1× USB-C

Perfectly compatible with ToolkitRC M8D for full charging performance

IC-controlled fan with automatic speed adjustment

Multiple protection features: short-circuit, overcurrent, overtemperature, overload, and overvoltage protection

Wide-range input 100240V AC (worldwide use)

Specifications:

Input voltage: AC 100-240V 50/60Hz

Input current: MAX AC 10A

Output voltage:MAX 12V

Output current: MAX 62.5A

Output 4-mm ball ports: 12V at max 30A

Output XT60 male ports: 12V at max 30A

TypeC (PD3.0) output: 5V/9V at 3A, 12V at 2.5A, MAX 30W

USBA output (QC2.0): 5V/9V at 3A, 12V at 2.5A, MAX 30W

Connectors: 1xTypeC, 1xUSBA, 3xXT60 male, 2x4mm set of ball ports

Working temperature: -10-40℃

Size: 227*90.2*42.4mm

Weight: 1050g

Includes:

1 x ToolkitRC ADP750 750W XT60 power supply

1 x AC power cable

1 x XT60 to XT60 cable

1 x dual cable XT60 to XT90

1 x XT60 to Banana 4.0 cable
