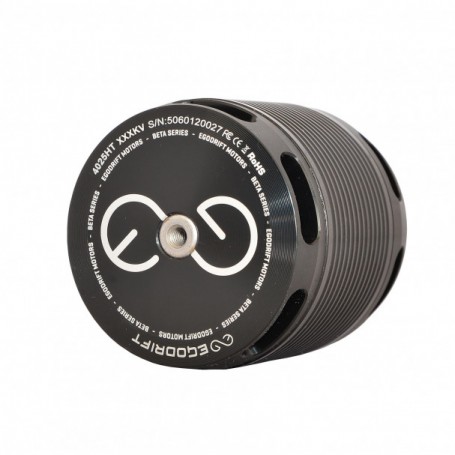

Egodrift BETA Tengu 4025HT / 550kV Motor (6x32)
zoom_out_map
chevron_left chevron_right
Nouveau

Egodrift BETA Tengu 4025HT / 550kV Motor (6x32)

259,90 CHF TTC 240,43 CHF (HT)
TTC
new_releases Pre-Order

Egodrift BETA Tengu 4025HT / 550kV Motor (6x32)



EGODRIFT BETA Series 4025HT motor with a kV rating of 550kV for 500-600 size helis on 12S battery setups.

Our EGODRIFT BETA Series is your chance to fly our latest rc helicopter motor creations first and before they're officially released.

The 4025 HT motors offer yet faster reaction speed, increased power and efficiency and come with a 2.5mm higher base improved cooling.

Please note that the shafts available for the 40xx HS models will for this reason NOT fit the 40xx HT models. Shaft kits for the HT models are of course available as well.



EGODRIFT Tengu 4025HT Series Product Dimensions



Specifications:



Manufacturer: EGODRIFT

Stator size: 4025

Motor configuration: 12N10P

Motor weight: TBA

Base Colour: Black

Wire colour: Copper

Motor wire type: High temperature copper wire

Motor wire: 1.12mm

Motor shaft: Hardened Steel

LiPo cells: 12S

Motor kV: 550 kV

Stator diameter: 40 mm

Stator height: 25 mm

Body Length: 52.5mm (2.067 inch)

Diameter: 49.6mm (1.95 inch)

Motor hole pattern: 25mm, 30mm

Idle current: TBA

Maximum Current: TBA

Maximum Power: TBA

Internal resistance: TBA



Includes:



1 x BETA Tengu 4025HT / 550kV Motor

3 x Gold Plated Amass Connector, Male

3 x Gold Plated Amass Connector, Female

4 x Mounting Screws

1x Bell securing screw

Egodrift BETA Tengu 4025HT / 550kV Motor (6x32)
0.50 kg
