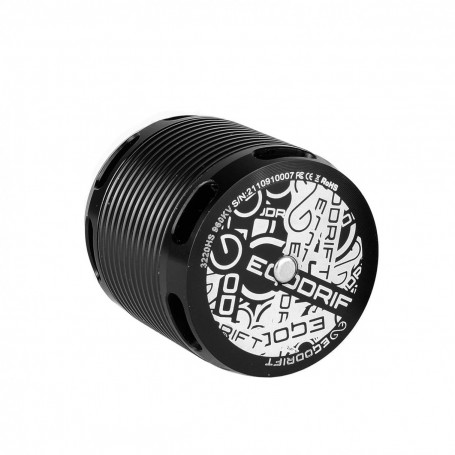

Egodrift Tengu 3220HS / 960kV Motor
zoom_out_map
chevron_left chevron_right
Nouveau

Egodrift Tengu 3220HS / 960kV Motor

129,90 CHF TTC 120,17 CHF (HT)
TTC
new_releases Pre-Order

Egodrift Tengu 3220HS / 960kV Motor



EGODRIFT Tengu high-performance brushless motors for RC heli are the result of one year of testing and development. The 3220HS comes with a kV rating of 960kV for 6S LiPo batteries and is the perfect choice for your 380 sized SAB Goblin (and Goblin Buddy), Oxy4Max or scale helicopter model. With the addition of the new 5x36mm shaft, this motor is also the perfect choice for your Henseleit TDSF model. (not shown in the pictures)

Like all models within the Tengu series, the top of the can features the iconic and heat-resistant EGODRIFT Stickerbomb design, to add the finishing touch to your 380 class heli build.

Each motor comes with mounting screws and 3 pairs of gold bullet connectors.



EGODRIFT Tengu 3220 Series Product Dimensions



Specifications:



Manufacturer: EGODRIFT

Stator size: 3220

Motor configuration: 12N10P

Motor weight: 180g

Wire colour: Copper

Motor wire type: High temperature copper wire

Motor wire: 0.38mm

Motor kV: 960 kV

Motor shaft: Hardened Steel

Mounting hole pattern: 4xM3(25)

Laser Design: EGODRIFT Stickerbomb

LiPo cells: 6S

Stator diameter: 32 mm

Stator height: 20 mm

Stator lamination: 0.15 mm (+)

Body Length: 41.1mm (1.62 inch)

Diameter: 40.5mm (1.59 inch)

Idle current: 3.1A

Maximum Current: 60A (Peak: 70A / 2 seconds)

Maximum Power: 1680W (Peak: 2000W / 2 seconds)

Internal resistance: 22.1 mOhm

Connection: Wire / Gold plated plugs



Includes:



1 x Tengu 3220HS / 960kV Motor (choose shaft)

3 x Gold Plated Connector, Male

3 x Gold Plated Connector, Female

4 x Mounting Screws

Egodrift Tengu 3220HS / 960kV Motor
0.50 kg
