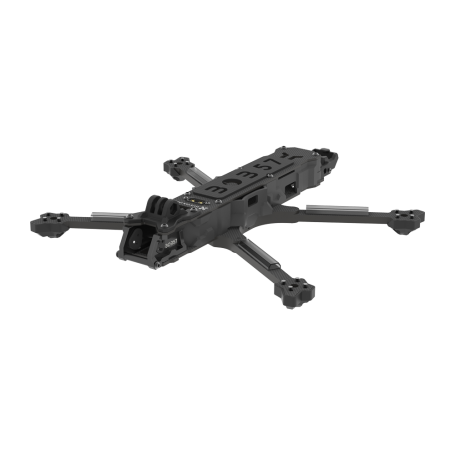

BOB57 O3 Frame Kit

IFLIGHT Chimera7 Pro 6S Long Range Frame Kit

The iFlight BOB57 is a long-range HD drone that was designed in collaboration with pilot & videographer Ellis van Jason.

The team crafted this cinematic 6-inch drone that ensures agility and flight time while combining the advantages of both 5-inch and 7-inch drones for both cinematic and freestyle flights.

Features:

Hybrid motor design optimized for  that can be used with both bi-blade and tri-blade 6" propellers

Solid antenna mount for less ocillations when using long antennas

H-shaped frame with robust middle section for less props in view

Gladiator shell protects from dust and water droplets

Front-mounting XT-60

Compatible with DJI O3 Air Unit and Vista

Specifications:

Product Name:BOB57 O3 Frame Kit

Frame wheelbase: 278mm

Frame Dimension: L165*W225*H34 mm

Frame Body Dimension: 34mm

Arm Thickness: 6mm

Bottom Plate Thickness: 1.5mm

Top Plate Thickness: 2mm

Upper Plate Thickness: 2.5mm

Motor mounting: 16x16mm

VTX Mounting: 25.5*25.5/Φ1.6mm, 20*20/Φ2mm

Included:

1 x BOB57 O3 Frame Kit

1 x BOB57 TPU Parts

2 x 215mm MIPI Video Cable for DJI O3 Air Unit

4 x Motor Wire Shield Tube

1 x Battery Anti-Slip Pad

2 x Battery Strap

1 x Screw Bag
