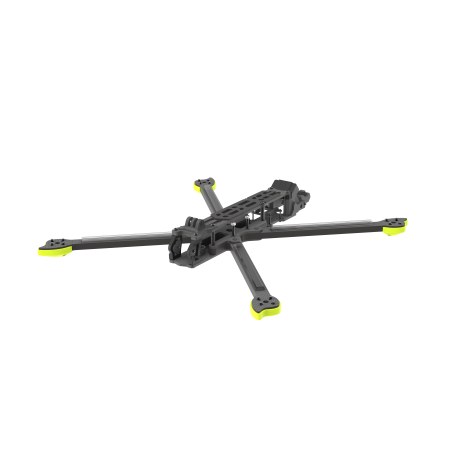

Nazgul XL10 V6 10 inch Frame Kit

Nazgul XL10 V6 10 inch Frame Kit

It's proud to announce the release of the XL series V6 Frames, XL10 V6 is a 10" size quadcopter, fit for the DJI O3 Air Unit system and Caddx Digital FPV system on it.

The main advantages of the XL series V6  are in the flight performance, and the stronger and thick arms.

The XL series V6 frames fly balanced because of the true X configuration and wide stance. These main changings make flight stable in the air.

Features:

Full 3K Carbon Fiber airframe

10" version fits popular 10" style propellers

Popular True-X configuration

Fits both 30.5x30.5 and 20x20 stacks

Compatible with DJI O3 Air Unit, Caddx Vista HD System, BLITZ Whoop 1.6W VTX

360° TPU protection and Antenna mounts

Specifications:

Product Name：Nazgul XL10 V6 10 inch Frame Kit

Wheelbase: 420mm

Frame Dimension: L297*W297*H35mm

Arm Thickness: 8mm

Bottom Plate Thickness: 3mm

Top Plate Thickness: 3mm

Upper Plate Thickness: 3mm

Max Flight Stack Height: 19mm

Max VTX Height: 29mm

Motor Mounting：16x16mm/19x19mm

VTX Mounting：20*20 Φ2mm/ 25.5*25.5 Φ2mm/ 30.5*30.5 Φ3mm

Weight: 345±5 grams

Includes:

1 x Nazgul XL10 V6 Frame

1 x Screw Bag

1 x TPU Set

1 x Battery anti-slip mat

2 x Battery straps (the color will be shipped randomly)
