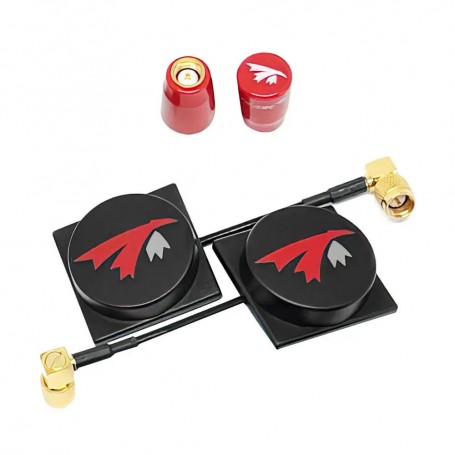

TrueRC X-AIR 5.8GHz MK II Antenna Stubby Combo - HDZERO Goggles

TrueRC X-AIR 5.8GHz MK II Antenna Stubby Combo - HDZERO Goggles

The TrueRC X-AIR 5.8GHz MK II Antenna Stubby Combo works with the HDZERO FPV Goggles. Slide the antennas onto the module’s rails and screw on the custom knurled SMA connectors to obtain 10dBic gain combined with a healthy flyable beam width of 120deg.

Pair with TrueRCs OCP Omni Antennas to yield an amazing flight experience in a compact and low-profile package!

Features:

Super wide 120-degree beam for each antenna combined with a 135deg beam width

Large SWR and axial ratio bandwidth, work even out of the 5.8GHz band

Mount directly onto the HDZero Goggles with included slide-on mounts.

Compact low-profile design, easy to store and transport

High 10 dBic for long-range and signal penetration

Custom knurled SMA connectors

Circularly Polarized

Specifications:

Beam-width @-3dB**: 68deg.

Polarization: RHCP or LHCP

Dimension: 32 x 32 x 15mm

Bandwidth: 5.1GHz-6.7GHz

Connector: SMA male

Beam-width*: 120deg

Gain: 9.5-10.5 dBic

Includes:

2x TrueRC X-AIR 5.8GHz MK II Stubby Antennas RHCP

2x TrueRC X-AIR 5.8GHz MK II Antennas RHCP

2x Side Mounts for HDZero FPV Goggles
