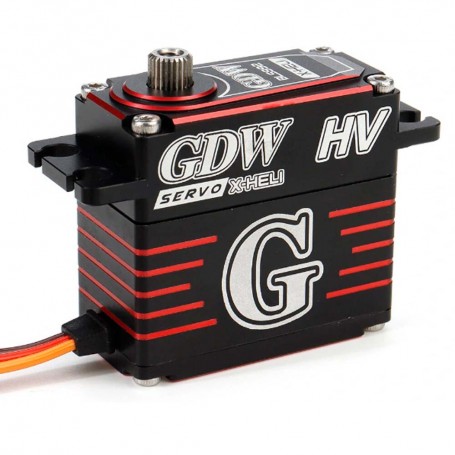

GDW BLS 992 HV Digital Swash Servo

GDW BLS 992 HV Digital Swash Servo

The Servo GDW 992 is designed for 3D RC Helicopter swash plate, providing an insane torque and speed

Compatible with all 550 to 800 size 3D helis

Features:

Very fast and high torque servo for Helicopters, large 3D airplanes and Jets

Brushless Digital Servo Helicopter Swash Plate Servo for X7 / KDS7.2 / SAB700 Racer Version RC Helicopter

Race-class helicopter steering gear

Helicopter high-speed digital steering gear

Stainless steel output teeth, double bearings

Tough and wear-resistant

Quick response, extraordinary response

28KG 0.055S

High-speed tail lock servo, neat and clean

Competition level configuration, player selection

High speed and stable

Specifications:

Working frequency: 1520us / 333Hz

Operating voltage: DC 4.8V-8.4V

Positioning speed / force:

20Kg.cm/0.05sec/60°@6.0V

25Kg.cm/0.04sec/60°@7.4V

28Kg.cm/0.03sec/60°@8.4V

Dimensions: 40.5x20x39mm

Weight: approx.77g

Motor: Brushless 17x18mm

Gearbox: full metal steel

Servo horn type: 25T - 5.9mm

Includes:

1x GDW BLS 992 HV Digital Swash Servo
