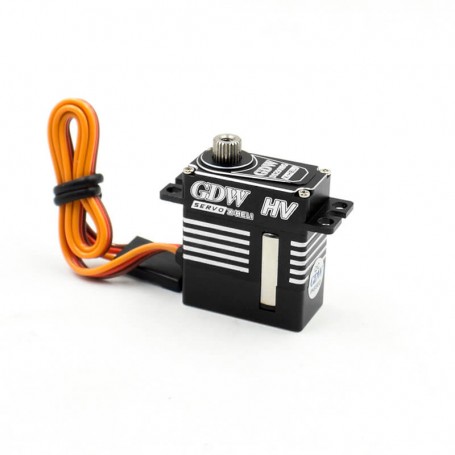

GDW DS290MG HV Digital Swash Servo

GDW DS290MG HV Digital Swash Servo

The servo GDW DS290MG HV Digital Swash Servo is designed for 3D RC Helicopter swash plate, providing an insane torque and speed

Compatible with 250 to 420 size 3D helis

Features:

Race-class helicopter steering gear

Helicopter high-speed digital steering gear

Stainless steel output teeth, double bearings

Tough and wear-resistant

Quick response, extraordinary response

Standard swashplate, for 3D helicopters

Competition level configuration, player selection

High speed and stable

Specifications:

With Softstart

Working frequency: 1520us / 333Hz

Operating Voltage: DC 4,8V - 8,4V

Speed and torque:

5,6Kg.cm/0,052sec/60°@8.4V

4,8Kg.cm/0,065sec/60°@7.4V

4,1Kg.cm/0,072sec/60°@6.0V

3,6Kg.cm/0,084sec/60°@4.8V

Dimensions: ca.22,9x12x27,4mm

Weight: ca.20g

Motor: Coreless 12x15mm

Case: full Aluminium

Gears: full Metal - Steel

Horn Typ: 25T - 4,9mm

Includes:

1x GDW DS290MG HV Digital Swash Servo
