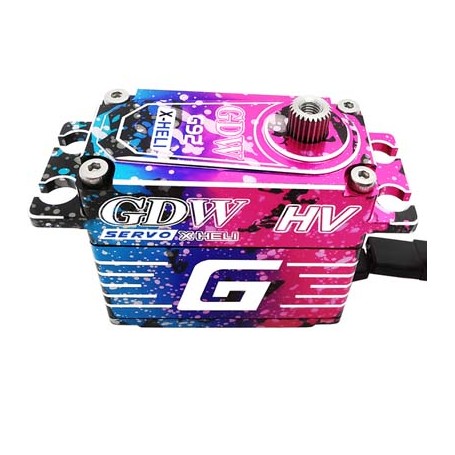

GDW G92 HV Digital Swash Servo

GDW G92 HV Digital Swash Servo

The servo GDW G92 HV Brushless Standard is designed for 3D RC Helicopter swash plate, providing an insane torque and speed

Compatible with all 550 to 800 size 3D helis

Features:

Race-class helicopter steering gear

Helicopter high-speed digital steering gear

Stainless steel output teeth, double bearings

Tough and wear-resistant

Quick response, extraordinary response

Standard swashplate, for 3D helicopters

Competition level configuration, player selection

High speed and stable

Specifications:

GDW G92 HV Brushless Standard swashplate Servo for helicopters

Standard Size Servo

Operating voltage range: 4.8V – 8.4V

Working frequency: 1520µs / 333Hz

Dimensions: 40mm (55mm) x 20mm x 37.5mm

Weight: 77g ± 1g

Bench test values:

31kg.cm/0.125sec/60°@6.0V

38kg.cm/0.1sec/60°@7.4V

43kg.cm/0.09sec/60°@8.4V

Dead band: 2µs

Motor type: Brushless motor 17mm x 18mm

Gear material: steel

Horn gear spline: 25T ⌀ 5.9mm

Wire length: 330mm ± 5mm

Wire diameter: 0.3mm2

Number of wire cores: 60

Includes:

1x GDW G92 HV Digital Swash Servo
