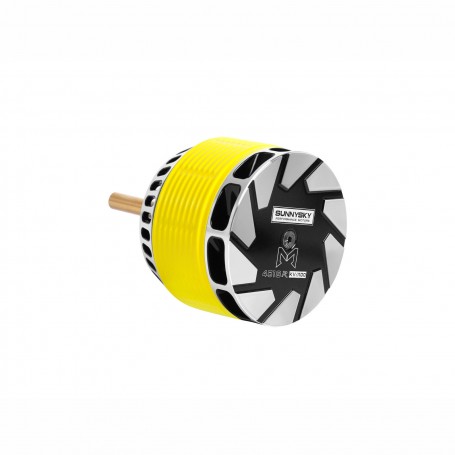

SUNNYSKY Brushless Motor M4518 / 1100KV
zoom_out_map
chevron_left chevron_right

SUNNYSKY Brushless Motor M4518 / 1100KV

259,00 CHF TTC 239,59 CHF (HT)
TTC
check In Stock

SUNNYSKY Brushless Motor M4518 / 1100KV



SunnySky M4518R 1100kv Motor is from the new line of SunnySky Master series M45 motors.

This motor is designed specifically for 550 rotor blade sized helicopters like OMP M5, Goosky RS5 and others 550-580 size helis with a configuration for 6S lipo battery.



Specifications:



Motor Kv: 1100KV RPM/Volt

Weight: 374g

Motor Dimensions: 56.3mm x 44mm

Shaft Dimensions: 6mm x 36mm

Continuous Current: 95 Amps

Continuous Power: 2280 Watts

Max Lipo Cell: 6s

Stator Diameter: 45.5 mm

Stator Thickness: 18 mm

No. of Stator Arms: 12

No. of Stator Poles: 10

Motor Wind: 3+3 Turn Delta

Mounting Holes: Φ30mm*4-M4



Includes:



1 x Motor

3 x 6mm Female Bullet Connectors

3 x Heat Shrink

1 x Sticker sheet

C1000273
0.60 kg
