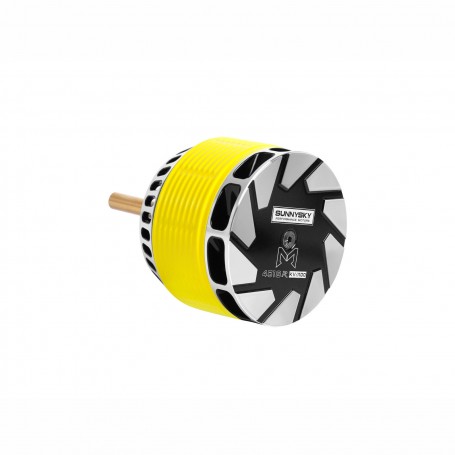

SUNNYSKY Brushless Motor M4518 / 850KV

SUNNYSKY Brushless Motor M4518 / 850KV

SunnySky M4518R 850kv Motor is from the new line of SunnySky Master series M45 motors.

This motor is designed specifically for 550 rotor blade sized helicopters like OMP M5, Goosky RS5 and others 550-580 size helis with a configuration for 8S lipo battery.

Specifications:

Motor Kv: 850KV RPM/Volt

Weight: 374g

Motor Dimensions: 56.3mm x 44mm

Shaft Dimensions: 6mm x 36mm

Continuous Current: 90 Amps

Continuous Power: 3000 Watts

Max Lipo Cell: 8s

Stator Diameter: 45.5 mm

Stator Thickness: 18 mm

No. of Stator Arms: 12

No. of Stator Poles: 10

Motor Wind: 4+4 Turn Delta

Mounting Holes: Φ30mm*4-M4

Includes:

1 x Motor M4518 / 850KV

3 x 6mm Female Bullet Connectors

3 x Heat Shrink

1 x Sticker sheet
