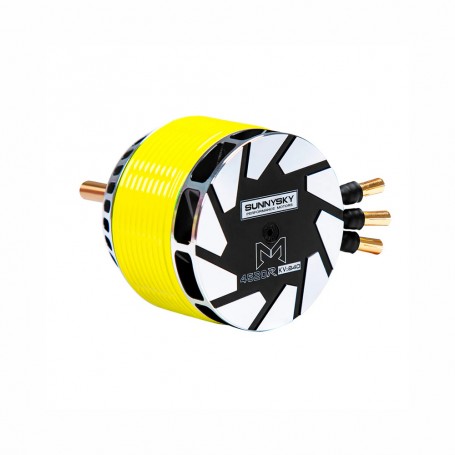

SUNNYSKY Brushless Motor M4520 / 1120KV

SUNNYSKY Brushless Motor M4520 / 1120KV

SunnySky M4520R 1120kv Motor is from the new line of SunnySky Master series M45 motors.

This motor is designed specifically for 550 to 600 rotor blade sized helicopters with a 6S configuration

Specifications:

Motor Kv: 1120KV RPM/Volt

Weight: 400g

Motor Dimensions: 56.3mm x 47mm

Shaft Dimensions: 6mm x 36mm

Continuous Current: 95 Amps

Continuous Power: 2280 Watts

Peak Current: 115A

Peak Current: 2760 Watts

Max Lipo Cell: 6s

Stator Diameter: 45.5 mm

Stator Thickness: 20 mm

No. of Stator Arms: 12

No. of Stator Poles: 10

Motor Wind:  5+4 Delta

Mounting Holes: Φ30mm*4-M4

Includes:

1 x Motor M4520 / 1120KV

3 x 6mm Female Bullet Connectors

3 x Heat Shrink

1 x Sticker sheet
