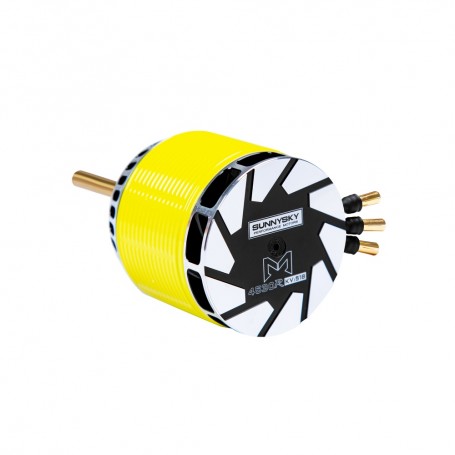

SUNNYSKY Brushless Motor M4530 / 518KV
SunnySky M4530 518kv Motor is from the new line of SunnySky Master series M45 motors.
This motor is designed specifically for high powered 700 class helicopters with a 12S configuration.
Specifications:
Model: M4530 KV518 Y-S
rpm/V: 518KV
Stator / Poles: 12N / 10P
Stator Diameter / Thickness: Ø45,5mm / 30mm
Motor Wind: 4+4 Delta thick wire
Motor Resistance: 8,5mΩ
Max Current: 125A
Max Peak Current: 200A
Max Continuous Power: 6000W
Max Peak Power: 9600W
Motor Diameter: Ø56.3mm x 57mm
Shaft Diameter: Ø6 x 38mm
Mounting Hole and Screws: 4 x Ø30mm M4
Max Lipo Cell: 12S
Motor Weight: 543g
Includes:
1 x Motor M4530 / 518KV
3 x 6mm Female Bullet Connectors
3 x Heat Shrink
1 x Sticker sheet
