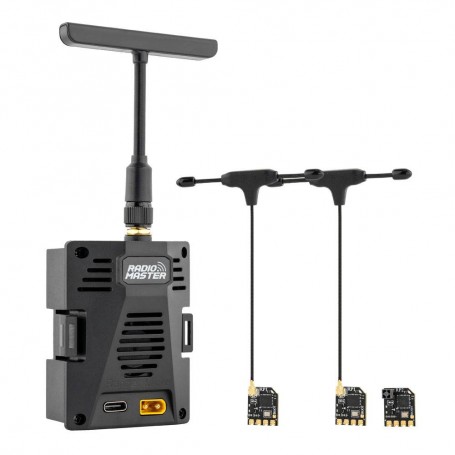

RadioMaster Ranger Micro 2.4Ghz ELRS Module - Starter Combo
zoom_out_map
chevron_left chevron_right

RadioMaster Ranger Micro 2.4Ghz ELRS Module - Starter Combo

  • ELRS 2.4GHZ EU-LBT
69,90 CHF TTC 64,90 CHF (HT)
TTC
new_releases Pre-Order

RadioMaster Ranger Micro 2.4Ghz ELRS Module - Starter Combo



The RadioMaster Ranger Micro 2.4GHz ELRS Module Starter Combo features a JR module bay adapter, packet rates up to F-1000Hz, up to 1 Watt Power output, and a high-efficiency cooling system.

This starter combo also includes additional RPI receivers and one RP2 Receiver.





Features:



The JR connector supports TX16S MKII/TX12 MKII or JR standard 5pin socket radios.

Micro ExpresssLRS 2.4GHz Module

High-Efficiency Cooling System

WiFi and Bluetooth Support

Max F-1000Hz Packet Rate

1W Power Output



Specifications:



Dimension: 136*49*33mm, 50g (with Moxon antenna) / 74*49*33mm, 40.5g (without antenna)

RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)

MCU: ESP32(main), ESP8285(aux,as esp backpack)

Frequency Range: 2400 MHz to 2480 MHz

XT30 Power supply voltage: DC 6V - 16V

Maximum packet rate: 500Hz/F1000Hz

Minimum receiver refresh rate: 25Hz

Weight: 50g (with Moxon antenna)

Regulatory Domain: ISM2400

Item: Ranger Micro Module

RF chip: SX1281IMLTRT

Bluetooth support: Yes

Wifi Support: Yes



T-ANTENNA:



Antenna polarization: vertical/horizontal polarization 

Type: T-type Omnidirectional Antenna 

Connector: RP-SMA Male

Frequency: 2.4GHz

Weight: 9.5g



Includes:



1x Radiomaster Ranger Micro 2.4Ghz ELRS Module

1x JR Standard 5pin Socket Module Bay Adapter

1x Hexagon Socket Screwdriver

1x 2.4GHz T Antenna - RP-SMA

2x Radiomaster RP1 Receiver

1x Radiomaster RP2 Receiver

1x Futaba CRSF socket cable

3x M2*5 Screws

HP0157.0034-COMB-LBT
0.30 kg
